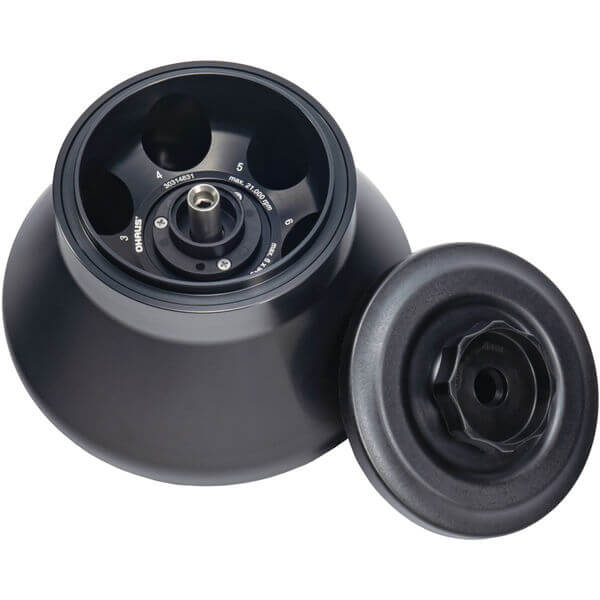

Home Rotor, Fixed Angle 8 x 50ml, 16,869g, 13,000rpm
Rotor, Fixed Angle 8 x 50ml, 16,869g, 13,000rpm
Rotor, Fixed Angle 8 x 50ml, 16,869g, 13,000rpm

Rotor, Fixed Angle 8 x 50ml, 16,869g, 13,000rpm

  • Part Number: 30314831

Available to order (Please check with Customer Service for delivery times)
$2,450

Rotor, Fixed Angle 8 x 50ml, 16,869g, 13,000rpm

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

Applications

Centrifugation Accessory

Construction

Aluminum or polypropylene material

Design Features

Easy-installation

Specifications

Maximum Speed

21,000 rpm

Maximum Relative Centrifuge Force (x g)

41,410 g

Maximum Capacity (Rotor)

6 x 50 ml

Tube diameter without adapter

29mm / 50ml

Outer/Inner Radius

84 mm

Rotor Style

Angle

Aerosol tight

Not applicable

Acceleration Time (sec)

40 / 446

Angle

26°

Compatible Models

FC5816R;  FC5718R;  FC5916R;  FC5720R;
FC5830R;  FC5816;  FC5718;  FC5916

Deceleration Time (sec)

30 / 1,323

Dimensions

6.77 in (172 mm)

Maximum loading weight

564 g

Multiple Maximum Speeds

Yes

Net Weight

8.74 lb (3.96 kg)

Working Environment

-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <  95%)



Size

Rotor, Fixed Angle 8 x 50ml, 16,869g, 13,000rpm

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

Applications

Centrifugation Accessory

Construction

Aluminum or polypropylene material

Design Features

Easy-installation

Specifications

Maximum Speed

21,000 rpm

Maximum Relative Centrifuge Force (x g)

41,410 g

Maximum Capacity (Rotor)

6 x 50 ml

Tube diameter without adapter

29mm / 50ml

Outer/Inner Radius

84 mm

Rotor Style

Angle

Aerosol tight

Not applicable

Acceleration Time (sec)

40 / 446

Angle

26°

Compatible Models

FC5816R;  FC5718R;  FC5916R;  FC5720R;
FC5830R;  FC5816;  FC5718;  FC5916

Deceleration Time (sec)

30 / 1,323

Dimensions

6.77 in (172 mm)

Maximum loading weight

564 g

Multiple Maximum Speeds

Yes

Net Weight

8.74 lb (3.96 kg)

Working Environment

-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <  95%)
