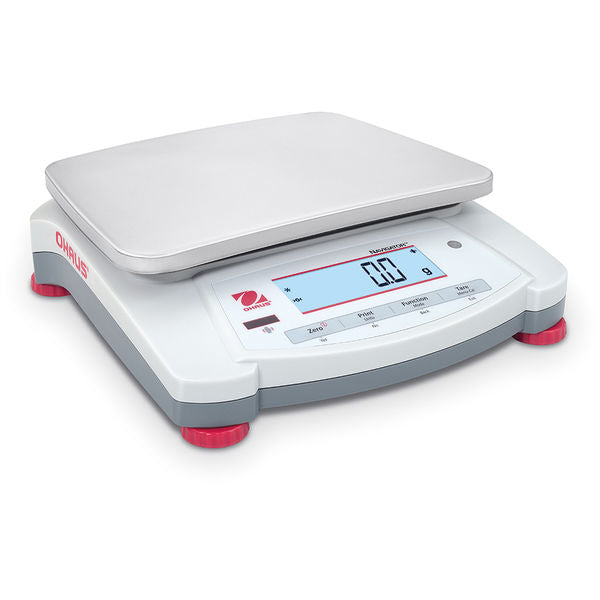

Home Ohaus Balance Navigator Portable NVT10201, 10200g, readability 0.1g, pan 230x174mm
Ohaus Balance Navigator Portable NVT10201, 10200g, readability 0.1g, pan 230x174mm
Ohaus Balance Navigator Portable NVT10201, 10200g, readability 0.1g, pan 230x174mm

Ohaus Balance Navigator Portable NVT10201, 10200g, readability 0.1g, pan 230x174mm

  • Part Number: 30626673

Available to order (Please check with Customer Service for delivery times)
$556.92

Balance, Portable precisions NVT10201, 10,200 g, readability 0.1g

OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator's a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing

Display

Liquid Crystal Display (LCD) with backlight

Operation

AC adapter (included) or 4 C batteries (not included)

Communication

RS232, USB, or Ethernet (available as accessories)

Construction

ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble

Design Features

Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings

Specifications

Maximum Capacity

10,200 g

Readability

0.1 g

Pan Size

6.9 in x 9.1 in (174 mm x 230 mm)

Battery Life

200 Hours with Disposable Batteries

Communication

Ethernet (Available as an Accessory);  RS232 (Available as an Accessory);
USB Device (Available as an Accessory)

Auxiliary Display Model

Not Applicable

Dimensions

9.8 in x 2.9 in x 9.5 in (250 mm x 74 mm x 240 mm) (LxHxW)

Display

LCD Display with white backlight

In-Use Cover

No

Legal for Trade

Not Applicable

Linearity ±

0.2 g

Net Weight

3.3 lb (1.5 kg)

Pan Construction

Stainless Steel

Power

4 C (LR14) Batteries (Not Included);  AC Adapter (Included)

Repeatability, typical

0.2 g

Stabilization Time

1.5 s

Tare Range

To capacity by subtraction

Transportation Case

Available as an Accessory

Units of Measurement

Singapore Tael;  Ounce Troy;  Pennyweight;  Kilogram;  Grain;  Tical;  Pound:Ounce;  Newton;  Taiwan Tael;  Gram;  Hong Kong Tael;  Pound;  Tola;  Ounce;  Carat

Working Environment

50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)



Size
