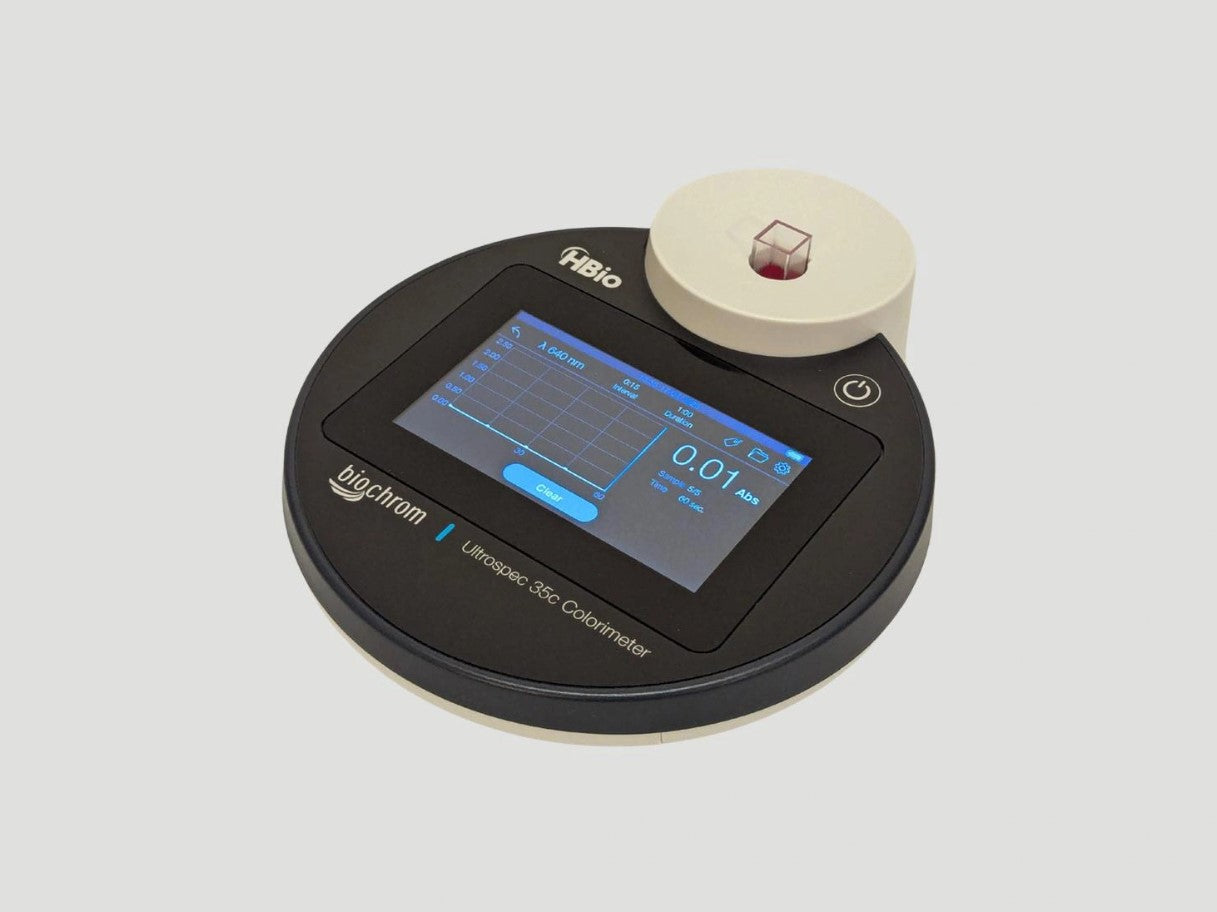

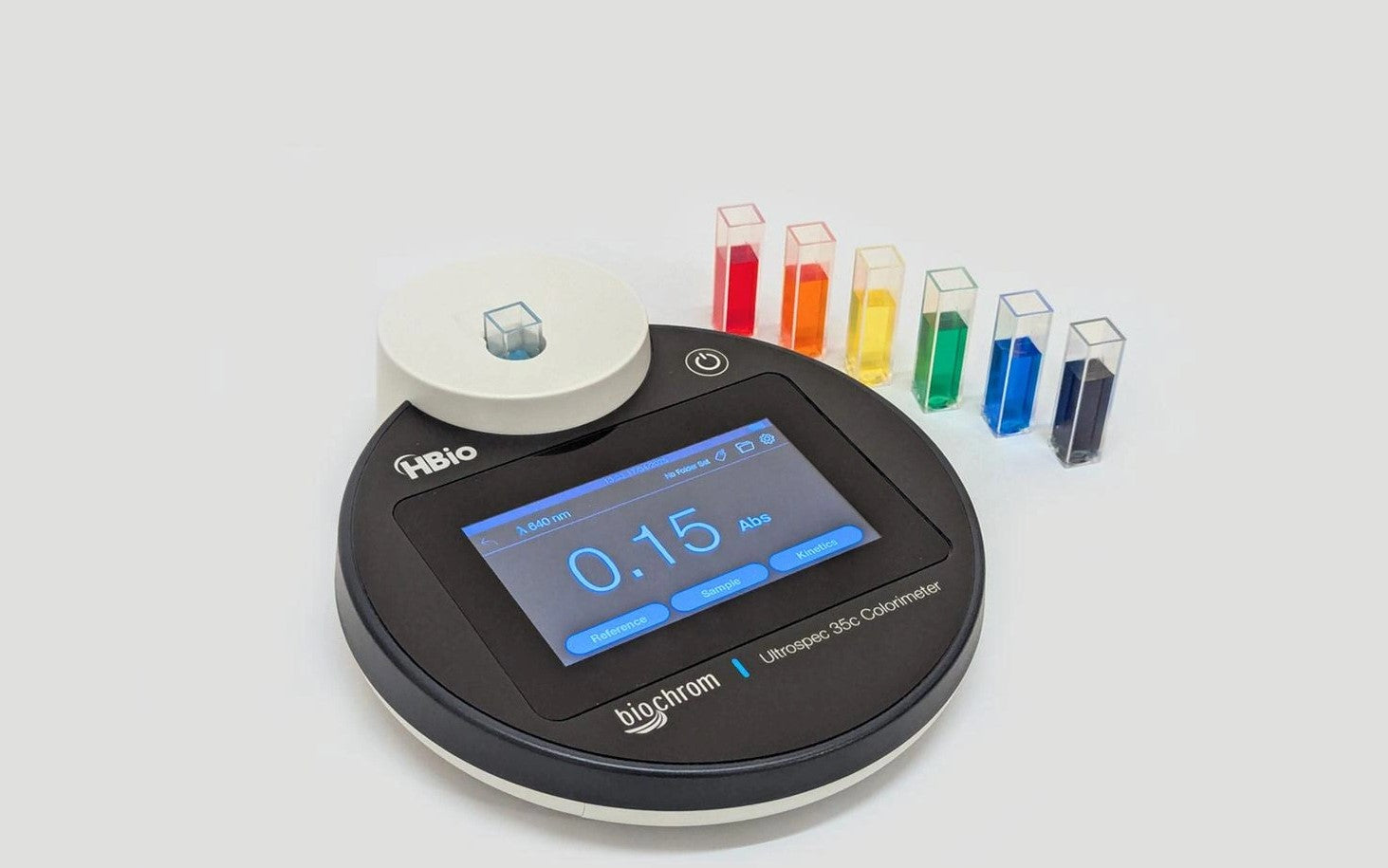

Biochrom Colorimeter, Ultrospec 35c, 440-680nm

  • Part Number: 80-3008-11

Available to order (Please check with Customer Service for delivery times)
$3,307.50

Biochrom Colorimeter, Ultrospec 35c, 440-680nm

A compact, portable, flexible colorimeter

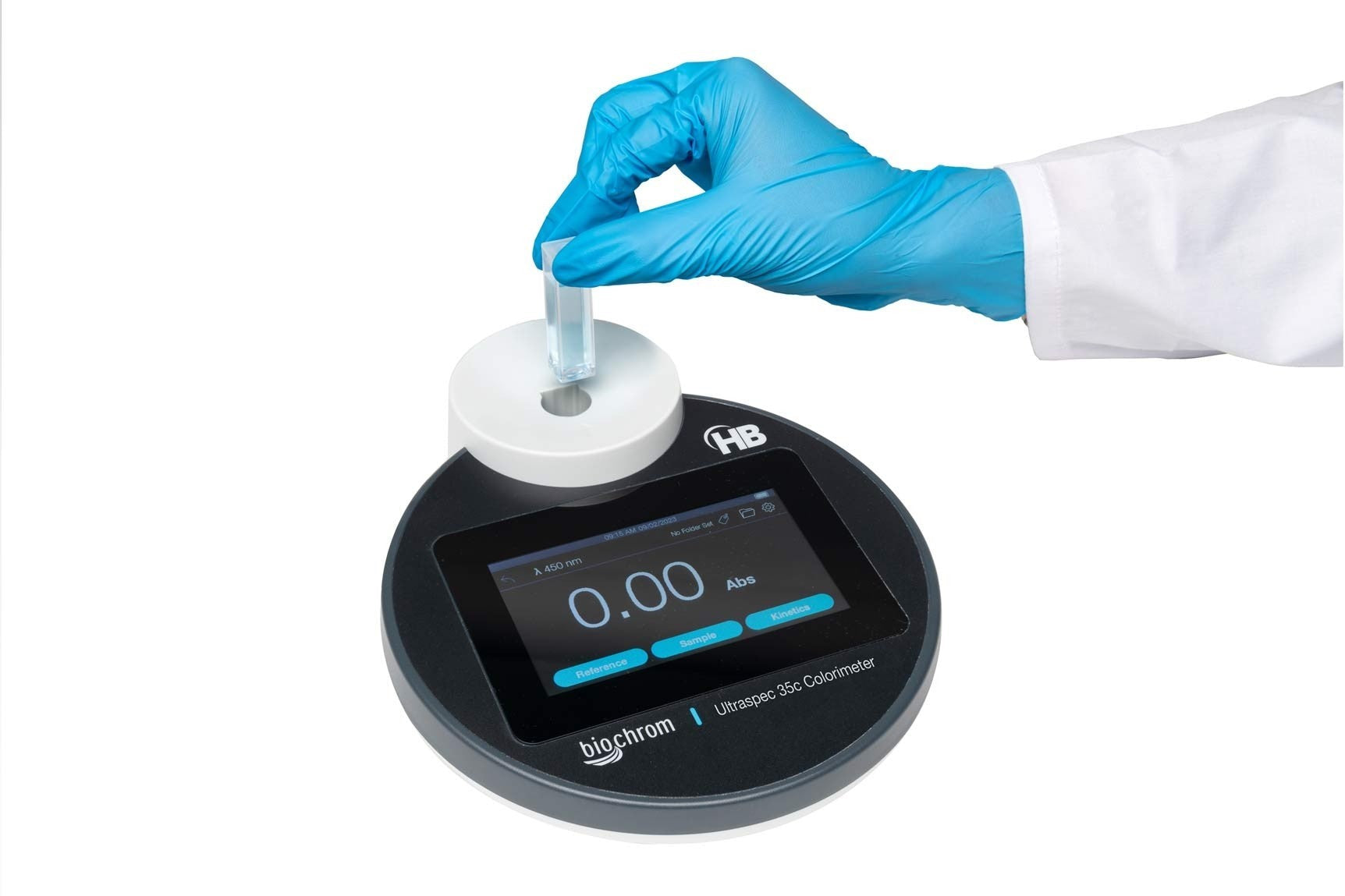

·        Measures the absorbance/transmission of liquid samples in either a cuvette or test tube at fixed wavelengths to determine molecular concentration.

·        Ideal for the basic molecular quantification and analysis in Life Science, Chemistry and Physics.

·        Perfect in the lab or for field-based work, in industry, environmental studies or remote locations where simple colorimetric testing is paramount.

Key features:

·        Flexible analysis: Measures samples in absorbance and % Transmission modes as well as having simple kinetics functionality.

·        Robust LED light source: User-selectable wavelengths: 450, 500, 520, 540, 600 and 640 nm.

·        Touchscreen display: The instrument has a 4.3’’ color touchscreen for easy workflow.

·        Instrument data output: Measurement data can be exported to a USB flash drive as comma-separated values (.csv).

Versatile and portable: The instrument has a small footprint allowing it to be operated as a handheld battery powered unit or connected to mains power on your benchtop. It is easy to clean and requires very minimal maintenance.

Technical Specifications

Specification

Data

Part Number

80-3008-00

Wavelength Range

450 to 640 nm

Light Source

LED

LED array wavelengths

450 nm, 500 nm, 520 nm, 540 nm, 600 nm, 640 nm

Detector

Photo Diode

Display

480 x 272-pixel resolution backlit LCD color display

Storage Conditions

-10 ̊C to 70 ̊C (14 ̊F to 158 ̊F)

Spectral Bandwidth

40nm

Photometric Range

Absorbance 0.0 to 2.5A

Photometric Accuracy

< ± 0.05A 1A using neutral density filter

Photometric Repeatability

± 0.02A at 1A

Operation Modes

Absorbance, Transmission, Kinetics

Sample Holder

Accepts:
• 10mm x 10mm cuvettes
• 16mm test tubes
Can accept 10-12mm tubes with optional adapter

Data Connector: USB-A

Interface for memory device

Power Connector: USB-C

Input power at 5V, 2 Amp max

Power (via external charger)

USB charger specifications (included): 100-240V, 50/60Hz, 10W

Battery

Internal rechargeable Li-Ion battery

Compliance

CE & UKCA marked, US/CAN safety (ETL or equivalent)

Dimensions

170mm W x 210 mm D x 50 mm H

Weight

0.6 kg (1.3 lbs)
