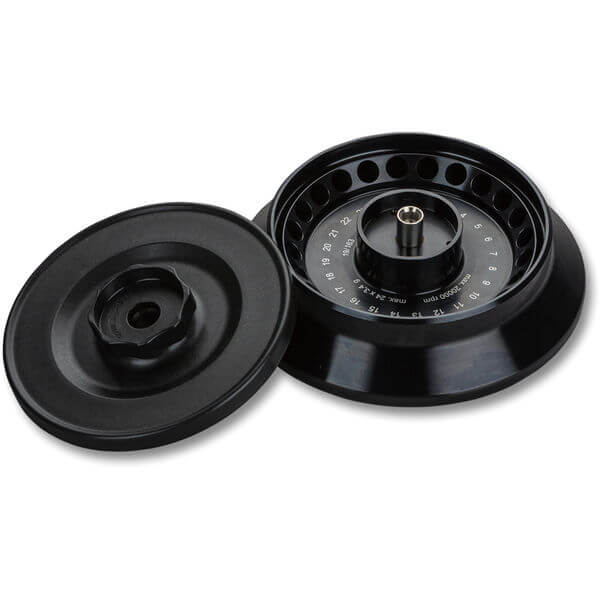

Rotor, Fixed Anlge, 24 x 1.5/2.0ml, 24,325G, 16,000 rpm

  • Part Number: 83041238

Available to order (Please check with Customer Service for delivery times)
$1,185.45

Rotor, Fixed Anlge, 24 x 1.5/2.0ml, 24,325G, 16,000 rpm

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

Applications

Centrifugation Accessory

Construction

Aluminum or polypropylene material

Design Features

Easy-installation

Specifications

Maximum Speed

16,000 rpm

Maximum Relative Centrifuge Force (x g)

24,325 g

Maximum Capacity(Rotor)

24 x 1.5 / 2.0 ml

Tube diameter without adapter

12 mm / 2.0 ml,1.5 ml

Outer/Inner Radius

8.5 cm

Rotor Style

Angle

Aerosol tight

Include

Acceleration Time (sec)

20 / 251

Angle

45°

Compatible Models

FC5816R;  FC5718R;  FC5916R;  FC5720R;
FC5816;  FC5718;  FC5916;  FC5714

Deceleration Time (sec)

16 / 635

Dimensions

6.85 in (174 mm)

Maximum loading weight

81.6 g

Rotor Recognition Method

Auto

Running Time

Continous;  10 sec to 99 h 59 min 59 sec;  Quickspin

Net Weight

2.65 lb (1.2 kg)

Working Environment

-4°F – 122°F, 95%RH, non-condensing
(-20°C – 50°C, 80%RH, non-condensing)



Size
